Ricoh GEN6 MH5340 Printhead, (Four Colors, 5PL)
Unit cost
RUB 216,283.00
/шт.
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
RUB 216,283.00
Total Cost
RUB 216,283.00
Amount
/шт.
1
Ricoh MH5340 Printhead, (Four Colors, 5PL)
Description:
This Ricoh GEN6 head (MH5340 series) is compatible with UV based inks. This is the 4 colour head. The 2 colour head is MH5320. A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.
Product Specifications:
Method: Piston pusher with metallic diaphragm plate
Print Width: 54.1 mm (2.1")

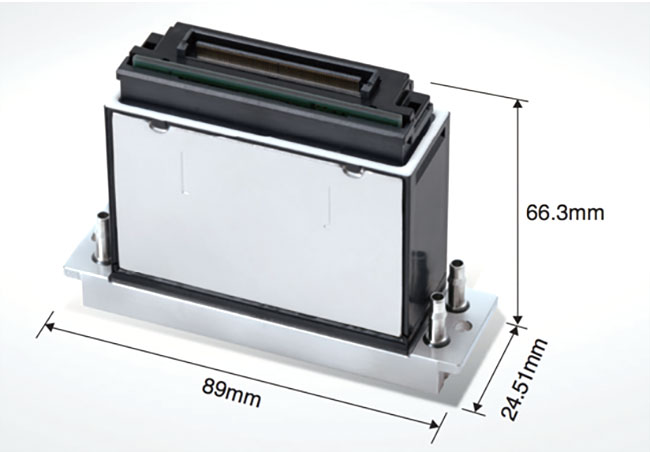

Dimensions: 89(W) x 66.3 (D) x 24.51 mm (H)
Weight: 228g (including 45C cable)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle spacing (Row to row distance): A: 1.101mm B: 11.8411 mm
Compatible ink (UV, Solvent, Asueous, Others.
Nozzle density: up to 600 npi
Max.number of color inks: 4 colors
Temperature control: Integrated Heater and Thermistor
Operator temperature range: 60° C
Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
Grey-scale: 4 levels
Viscosity ranfe: 10~12mPa・s
Surface tension: 28~35mN/m
Ink Port: Yes
Country of origin : Japan
