220V 50W 2-Color Pneumatic Pad Printer with Sealed Ink Cup and Shuttle
Unit cost
RUB 688,747.00
/комплект
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
RUB 688,747.00
Total Cost
RUB 688,747.00
Amount
/комплект
1

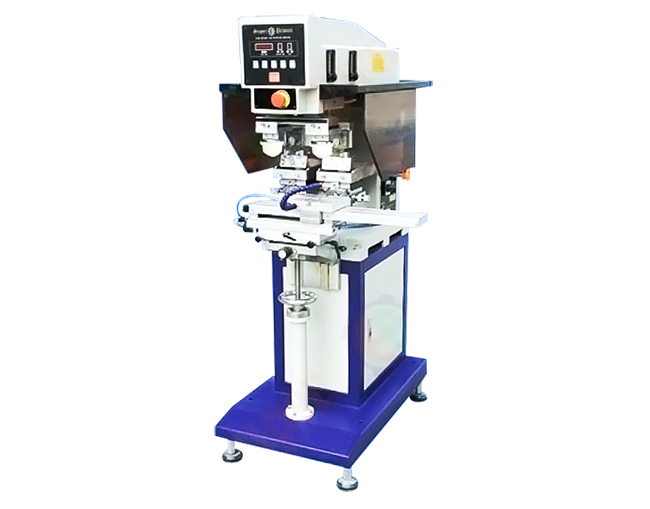

220V 50W 2-Color Pneumatic Pad Printer with Sealed Ink Cup and Shuttle
The SPC-824SD is a 2-color, closed ink cup automatic pad printer with a shuttle. The machine has 90mm ink cup and a printable area of 3.1" (80mm) in diameter.
Features:
1.Double color printing, pneumatic driven shuttle system.
2.Microprocessor controlled, easy and convenient to operate.
3.Automatic 5-digit piece counter.
4.Aluminum alloy frame, the machine is light and sturdy.
5.Convenient ink loading ink cup, easy to install, operate and clean.
6.Ink cup system dramatically reduces airborne solvent vapors.
7.The speed and the vertical stroke of the heads can be adjusted independently.
8.Ink cup is automatically balanced, ensures a perfect ink scraping.
9.The extra function “twice inking, once printing” is designed for thicker ink film.
10.For different requirements, the working speed can be adjusted.
11.2-color, 1-color printing available, the two printing units can be adjustable independently.
12.Air jet for fast drying between colors.
Specifications:
Printer type: Automatic 2-color with shuttle
Stroke distance: 5.8" /148 mm
Workstations: 2
Max. steel plate: 3.9" x 9.8" / 100 x 250mm
Ink cup size: 3.54" / 90mm
Max. printing diameter: 3.1" / 80mm in diameter)
Max. printing speed: 1100 pcs per hour
Max. printing pressure:1155N / 6 bar
Power supply: 110 / 220V, 60 / 50Hz, 50W
Air consumption: 184 liter / min (6bra)
Printer Dimensions: 33.9" x 24.3" x 54" / 861 x 618 x 1370 mm
Net weight: 290 lbs /132kg
Package:
Packing size: 39.7" x 33.5" x 60.5" / 1010 x 850 x 1535 mm
Gross weight: 415.8 lbs /189 kg

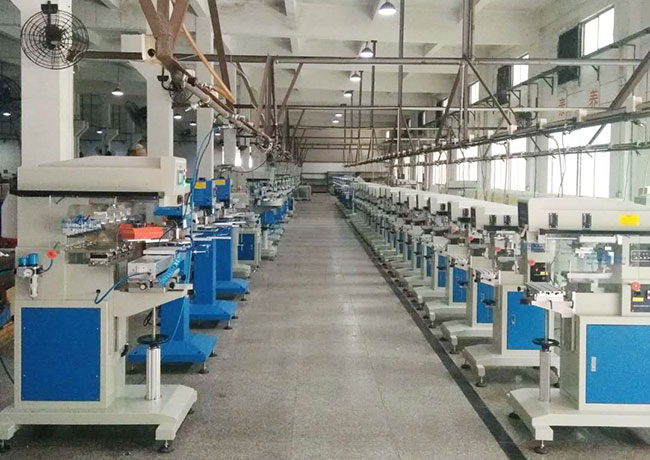

Factory:
